Principle: Dynamic online weighing and overweight & underweight rejection.
Function: It is used for online checking if the finished products are within the preset standard weight.
Technical Parameter:
Model | TGCW-500*300 |
Weighing product | Weight range (1g-5000g) |
Max size: (300*250*250 mm L*W*H) | |
Weighing capacity | 3000g |
Minimum graduation | 0.01g |
Weighing speed | 120 pcs/min |
Weighing accuracy | ±1-2g |
Weighing belt size | 500mm*300mm (L*W) |
Weighing direction | From left to right (Facing the operation display) |
Weighing sensor | Germany HBM |
Control system | Independent R & D |
Operation display | 8 inches touch screen |
Weighing data output | USB port |
Rejecting type | Flapper/pusher (with light alarming) |
Products parameters | Can restore and recall 100 products |
Language | English |
Height of conveyor | 750+60mm (Customized) |
Power supply | Single phase AC220V±10%, 50/60HZ |
Construction | SUS304, polishing |
HS code | 84232010.00 |

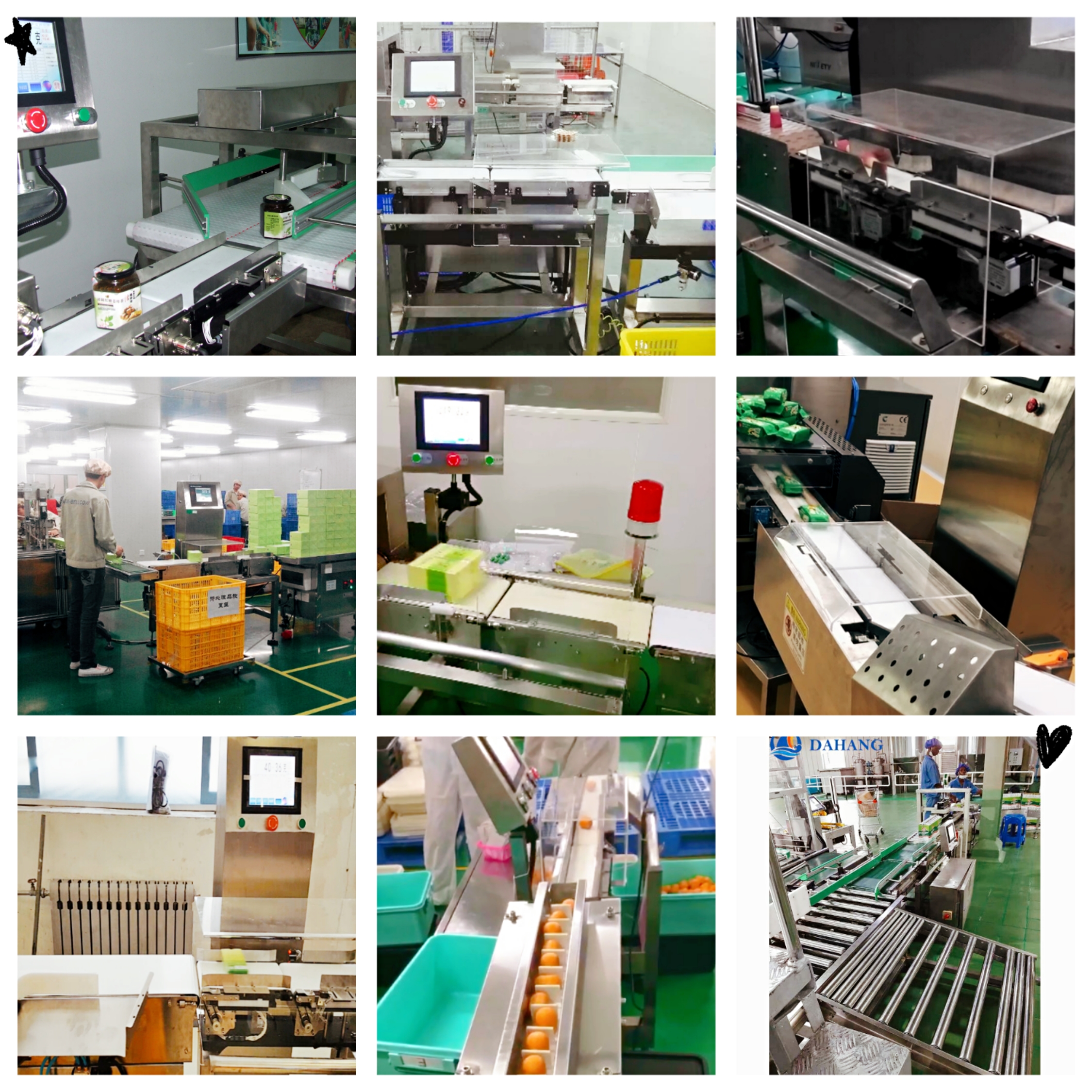

Application:
The economic online checkweigher series are applied mainly for quality control in food, coffee, vegetable, fruit, meat, pharmaceutical, daily necessities, chemical etc industries. It could embed in a variety of production/transportation lines and conveyor systems, weigh products one by one and reject the wrong weight automatically.
